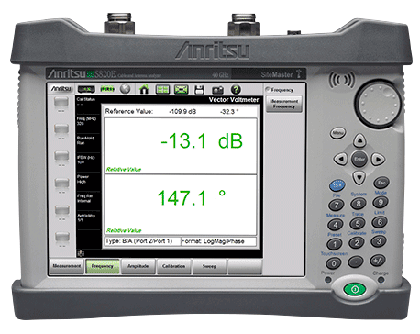

S820E Microwave Site Master Handheld Cable and Antenna Analyzer
Delivering benchtop microwave performance in a compact handheld package, available with Vector Network Analyzer (VNA) and Vector Voltmeter (VVM) options
Product Partner:
Product Description
The Microwave Site Master S820E family with frequency options covering 1 MHz — 8, 14, 20, 30, and 40 GHz, is the world’s most advanced Site Master ever developed. Available Vector Network Analyzer (VNA) and Vector Voltmeter (VVM) options allow users to easily expand the S820E’s versatility at any time. Adding options to the S820E is hassle free, simply purchase the desired option(s) and install the option activation key(s) provided by Anritsu. No need to send the instrument into a service department because all hardware and calibrations required are already built into the S820E before it leaves the factory.
Feature List
- S820E frequency range: 1 MHz — 8, 14, 20, 30, or 40 GHz
- VNA Mode (option) offers fully reversing 4 S-Parameter measurement capabilities
- VVM Mode (option) with standard A/B and B/A Ratio capability
- VIP Mode: Optical connector inspection with IEC 61300-3-35 based Pass/Fail standard (requires USB Video Inspection Probe G0306A, sold separately)
- 110 dB of dynamic range from 20 MHz — 40 GHz
- 550 μs/data point for fast field measurements
- Advanced and Classic Mode GUI (i.e. S810D/S820D)
- Coaxial and waveguide measurement supported
- 1-port measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, 1-port phase
- 2-port measurements: Transmission Measurement and Swept Cable Loss
- High Accuracy Power Meter measurements with external power sensors
- USB/Ethernet connectivity, full remote control capability
- Intuitive menu-driven 8.4 inch touchscreen with daylight/nighttime viewable modes
- Field-proven design: Explosive Atmosphere MIL-PRF-28800F Section 4.5.6.3 compliant
- Supported by Multiwave Smart Aligner Android application
- Standard three-year warranty (battery one-year warranty)
